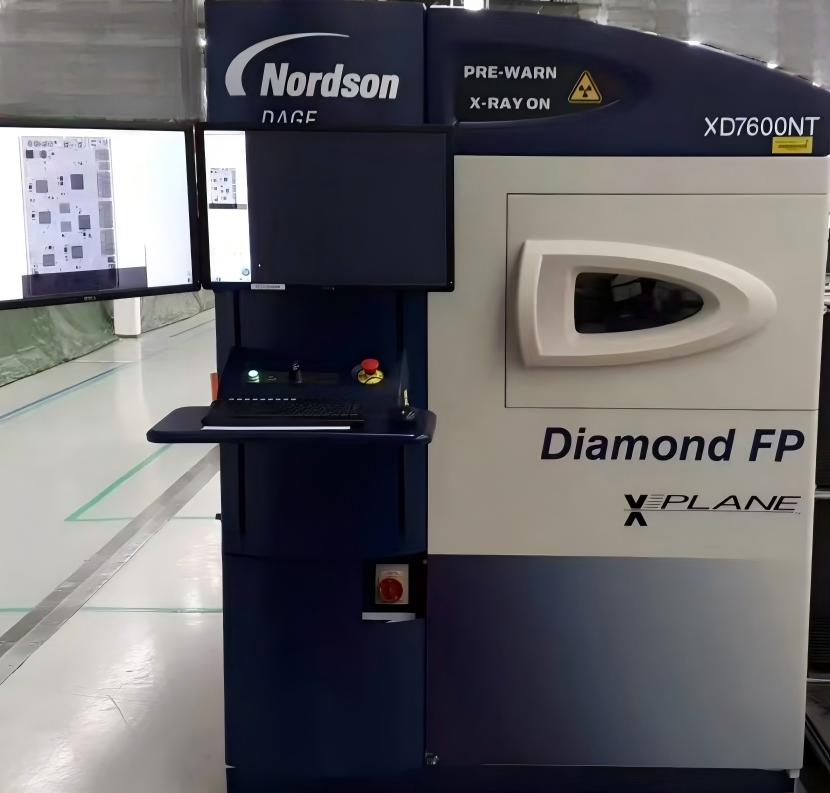

Nordson DAGE XD7600NT X-Ray Inspection System | Used X-Ray Equipment
Nordson DAGE XD7600NT is a high-resolution X-Ray inspection system designed for detailed inspection and failure analysis of electronic assemblies, PCBs, semiconductor packages and advanced electronic components.
The XD7600NT combines a high-performance sealed transmissive X-Ray tube, advanced digital imaging and high-magnification inspection capabilities to reveal hidden structures and internal defects that cannot be identified through conventional optical inspection.
The XD7600NT uses Nordson DAGE's NT sealed transmissive X-Ray tube technology, providing high-resolution imaging without the routine filament replacement associated with conventional open-tube systems.
Depending on the configuration, the XD7600NT platform can achieve extremely fine feature recognition and high-magnification imaging for detailed inspection of small electronic structures. Nordson's historical specifications list configurations with feature recognition down to 0.1 µm and target power up to 10 W.
The XD7600NT supports advanced inspection functions for applications requiring detailed internal analysis.
Typical capabilities include:
BGA Void Measurement、Die Void Inspection、Automated Inspection Routines、Oblique Angle Viewing、Image Enhancement、Data Logging & Reporting
The system can also be configured with advanced µCT and X-Plane® technologies for 3D inspection and analysis, depending on the specific equipment configuration.
Oblique-angle imaging allows operators to examine solder joints and internal structures from different viewing angles. Public specifications for the XD7600NT list up to 70° oblique viewing, helping users analyze complex solder joints and hidden structures.
SMT / PCBA、BGA / CSP、Semiconductor Packaging、Advanced Packaging、Power Electronics、Automotive Electronics、Consumer Electronics、Industrial Electronics、Medical Electronics、Failure Analysis
Solder Voids、BGA Voids、Open Solder Joints、Solder Bridging、Insufficient Solder、Die Voids、Wire Bond Defects、Cracks、Delamination、Internal Structural Defects
SMT Inspection World provides used Nordson DAGE XD7600NT X-Ray inspection systems for electronics and semiconductor manufacturers worldwide.
Before delivery, used equipment can be professionally inspected, functionally tested and evaluated according to its actual configuration and operating condition.
We also provide:
Equipment Sales、Used Equipment Trading、Equipment Rental、Installation & Commissioning、Maintenance、Spare Parts Supply、Equipment Upgrade、Technical Support
Specializing in brand new & used PARMI 3D Automatic Optical Inspection (AOI) and 3D Solder Paste Inspection (SPI) equipment sales, rental and genuine spare parts supply. With more than ten years of in-depth industry experience, we have served over 50 manufacturing enterprises at home and overseas.
All new and used devices are fully overhauled, precision-calibrated and functionally tested in strict accordance with original factory delivery standards. Every hardware component, software program and optical system is debugged item by item to ensure excellent operating stability and inspection accuracy. All equipment is fully production-ready and can be put into SMT line operation immediately after arrival.
