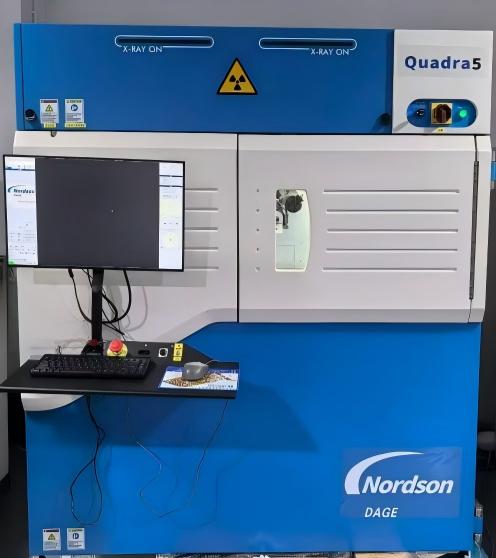

Nordson DAGE Quadra 5 X-Ray Inspection System | Used X-Ray Equipment
Nordson DAGE Quadra 5 is a high-performance X-Ray inspection system designed for SMT, PCBA and semiconductor package inspection.
The Quadra 5 combines high-resolution X-Ray imaging with advanced inspection capabilities to visualize hidden structures and internal defects that cannot be identified through conventional optical inspection. It supports 2D and 3D X-Ray inspection, making it suitable for detailed analysis of electronic assemblies and advanced packages.
The Quadra 5 uses the QuadraNT sealed-transmissive X-Ray tube and Aspire FP flat-panel detector to provide high-quality X-Ray images for detailed inspection. Historical Nordson DAGE specifications list 0.35 μm feature recognition at up to 10 W, with an optional higher-power configuration.
The Quadra 5 supports advanced X-Ray inspection options including X-Plane® and µCT (3D Computed Tomography). These technologies can help analyze complex structures, solder joints, voids and multilayer assemblies without physically cutting the PCB or component.
SMT / PCBA、BGA / CSP、QFN / LGA、Semiconductor Packaging、Power Electronics、Automotive Electronics、Consumer Electronics、Industrial Electronics、Medical Electronics
Solder Voids、Head-in-Pillow、Open Joints、Solder Bridging、Insufficient Solder、PTH Defects、Component Cracking、Wire Bond Defects、Internal Structural Defects
SMT Inspection World provides used Nordson DAGE Quadra 5 X-Ray inspection systems for electronics manufacturers worldwide.
Used equipment can be professionally inspected, functionally tested and evaluated according to its actual configuration and condition before delivery.
We also provide installation, commissioning, maintenance, spare parts and technical support for used X-Ray inspection equipment.
Used Equipment Sales、Equipment Rental、Installation & Commissioning、Equipment Maintenance、Spare Parts Supply、Equipment Upgrade、Technical Support
Specializing in brand new & used PARMI 3D Automatic Optical Inspection (AOI) and 3D Solder Paste Inspection (SPI) equipment sales, rental and genuine spare parts supply. With more than ten years of in-depth industry experience, we have served over 50 manufacturing enterprises at home and overseas.
All new and used devices are fully overhauled, precision-calibrated and functionally tested in strict accordance with original factory delivery standards. Every hardware component, software program and optical system is debugged item by item to ensure excellent operating stability and inspection accuracy. All equipment is fully production-ready and can be put into SMT line operation immediately after arrival.
