UNICOMP AX9100 Micro-focus X-Ray Inspection Machine

High-precision 7-axis X-ray inspection system with 2.5D oblique view & 360° rotary table. Ideal for BGA, CSP, Flip Chip, semiconductor packaging and PCBA void & solder joint inspection.

#XrayInspection #NonDestructiveTesting #BGAInspection #SMTInspection #SemiconductorTesting

InquireAdd to Basket

Product DetailsFAQInquire

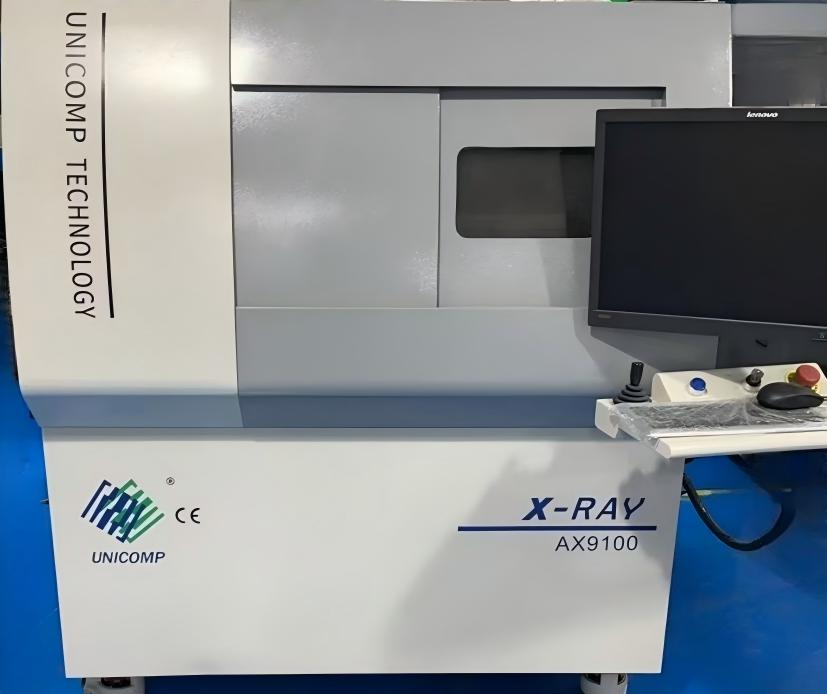

UNICOMP AX9100 Micro-focus X-Ray

UNICOMP AX9100 is an advanced micro-focus X-ray non-destructive testing system for high-density electronic packaging.
Equipped with 130kV micro-focus X-ray source and FPD flat panel detector, it supports 55° tilted 2.5D imaging and 7-axis motion control to achieve all-round inspection.
Perfect for detecting hidden defects like voids, poor soldering, delamination and displacement inside BGA, CSP, Flip Chip, LED, semiconductor packages and lithium batteries.

- 7-axis linkage & 360° rotary worktable
- 55° oblique 2.5D imaging for solder joint height measurement
- Max 1600X magnification for micro defect observation
- AI image enhancement for clearer defect recognition
- CNC automatic positioning & programmable inspection
- Built-in SPC quality statistical analysis
- CE certified, full radiation safety shielding

Specializing in brand new & used PARMI 3D Automatic Optical Inspection (AOI) and 3D Solder Paste Inspection (SPI) equipment sales, rental and genuine spare parts supply. With more than ten years of in-depth industry experience, we have served over 50 manufacturing enterprises at home and overseas.

All new and used devices are fully overhauled, precision-calibrated and functionally tested in strict accordance with original factory delivery standards. Every hardware component, software program and optical system is debugged item by item to ensure excellent operating stability and inspection accuracy. All equipment is fully production-ready and can be put into SMT line operation immediately after arrival.

We support flexible procurement methods including direct equipment purchase, short-term and medium-long-term rental solutions. Perfectly adapting to order volume fluctuations, new project sampling, production line expansion and temporary equipment replacement, effectively reducing customers’ fixed asset investment pressure.

We provide one-stop professional services covering equipment installation, commissioning, on-site technical training, rapid fault response and regular maintenance. Reliable technical support and after-sales services are available for both domestic and overseas projects, ensuring long-term stable quality control of SMT production lines.
