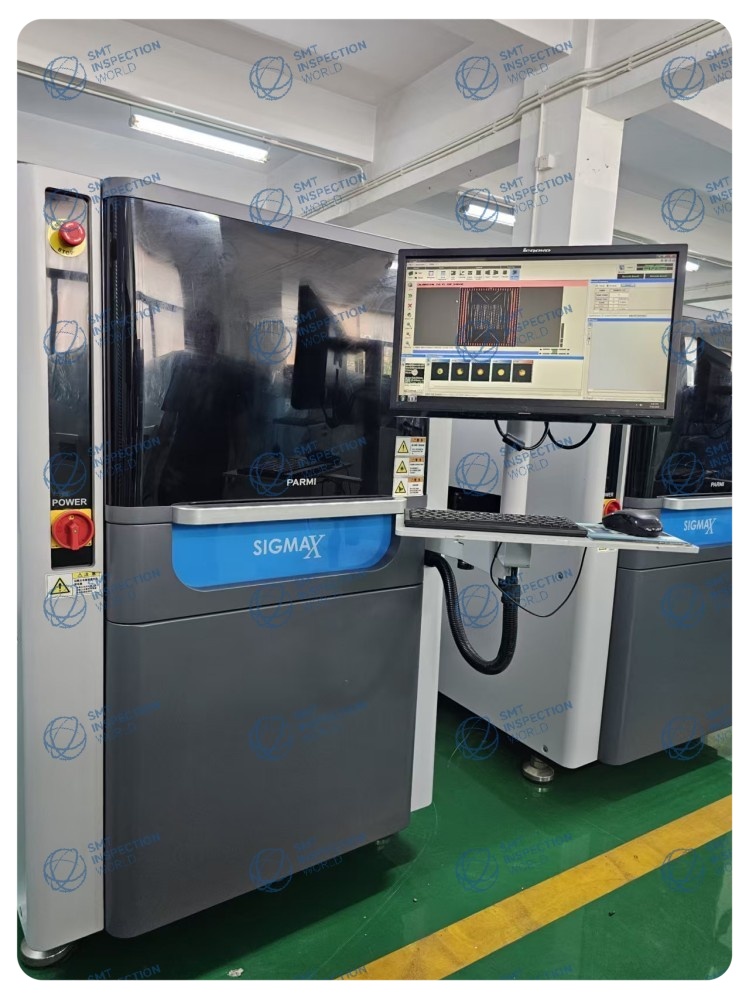

PARMI SigmaX L , 3D SPI
The PARMI SigmaX D is a professional 3D Solder Paste Inspection (SPI) system designed for modern high-speed SMT production lines.
Using advanced laser line scanning technology, the SigmaX D generates detailed 3D inspection data of the PCB and solder paste, enabling accurate measurement of solder paste height, area, volume, offset, bridging, and shape abnormalities.
The system also supports PCB warpage inspection, PCB shrinkage and expansion compensation, and Feedback & Feedforward process control, helping manufacturers achieve more stable and intelligent SMT process control.
The SigmaX D uses laser line scanning technology to capture three-dimensional data from the PCB and solder paste, generating genuine 3D inspection images.
The inspection method is designed to minimize the influence of the inspected object's color, material, and surface characteristics, providing reliable 3D measurement data for high-precision solder paste inspection.
PCB warpage can significantly affect solder paste printing, component placement, and soldering quality.
The SigmaX D can scan the PCB surface and measure PCB warpage while supporting Z-axis control and compensation to maintain a stable inspection reference.
By comparing PCB fiducial coordinates with Gerber data, the SigmaX D can analyze PCB shrinkage and expansion during production and provide compensation data for solder paste printing position control.
This capability is particularly valuable for high-density and high-precision PCB manufacturing.
The SigmaX series uses the next-generation RSC-7 3D laser inspection technology. Publicly available product information indicates that the RSC-7 provides improved inspection speed compared with the previous RSC-6, with SigmaX configurations reaching up to approximately 100 cm²/sec, depending on configuration.
3D SPI、3D AOI、X-Ray / AXI、ICT / FCT、Used SMT Inspection Equipment、SMT Inspection Equipment Rental、Spare Parts Supply、Equipment Upgrade & Maintenance、Technical Support
SMT Inspection World provides professional SMT inspection and testing equipment solutions for global electronics manufacturers, including equipment sales, used equipment trading, rental services, spare parts supply, equipment upgrades, maintenance, and technical support.
Real 3D Inspection · High-Speed Solder Paste Inspection · Intelligent SMT Process Control

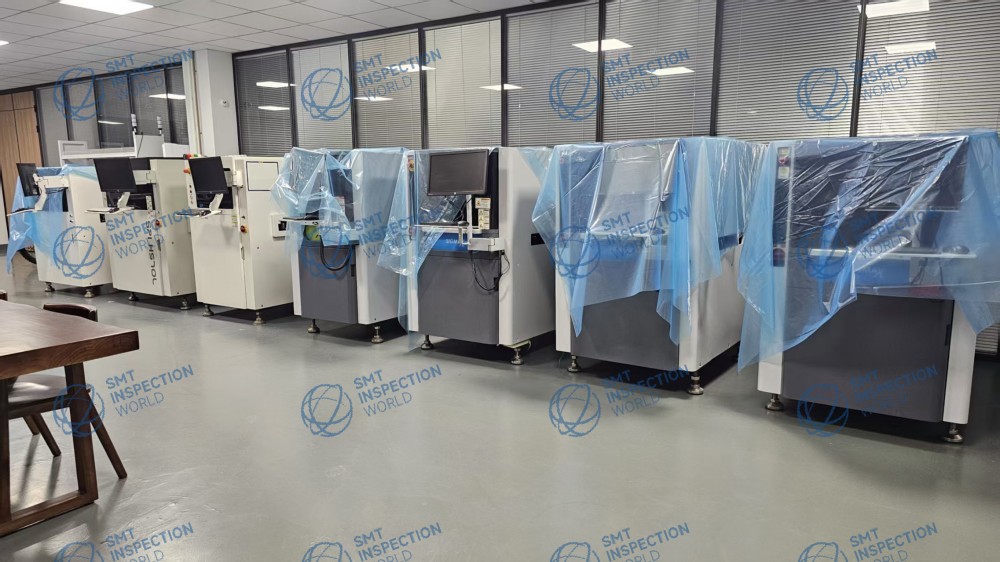

Specializing in brand new & used PARMI 3D Automatic Optical Inspection (AOI) and 3D Solder Paste Inspection (SPI) equipment sales, rental and genuine spare parts supply. With more than ten years of in-depth industry experience, we have served over 50 manufacturing enterprises at home and overseas.
