Mirtec MS-11DL ， 3D SPI 2014

The MIRTEC MS-11 is a high-performance 3D Solder Paste Inspection (SPI) system suitable for versatile modern SMT production lines.

Adopting MIRTEC patented shadow-free dual-projection Moiré phase-shift 3D optical inspection technology, the equipment conducts comprehensive 3D analysis of solder paste printing quality, including solder paste height, volume, area, position, shape and printing consistency. It enables precise inspection for tiny 0201 pads and supports a minimum stencil thickness of 30μm.

By identifying printing defects at the early stage of the SMT process, the MS-11 helps manufacturers reduce downstream defects, improve process stability and raise the overall PCBA production yield.

#MIRTEC MS-11 #MIRTEC MS-11DL #MIRTEC MS-11e #MIRTEC 3D SPI #MS-11 SPI #3D Solder Paste Inspection #SMT SPI Machine #Solder Paste Inspection Equipment #MIRTEC SMT Inspection #High-Precision SPI

InquireAdd to Basket

Product DetailsFAQInquire

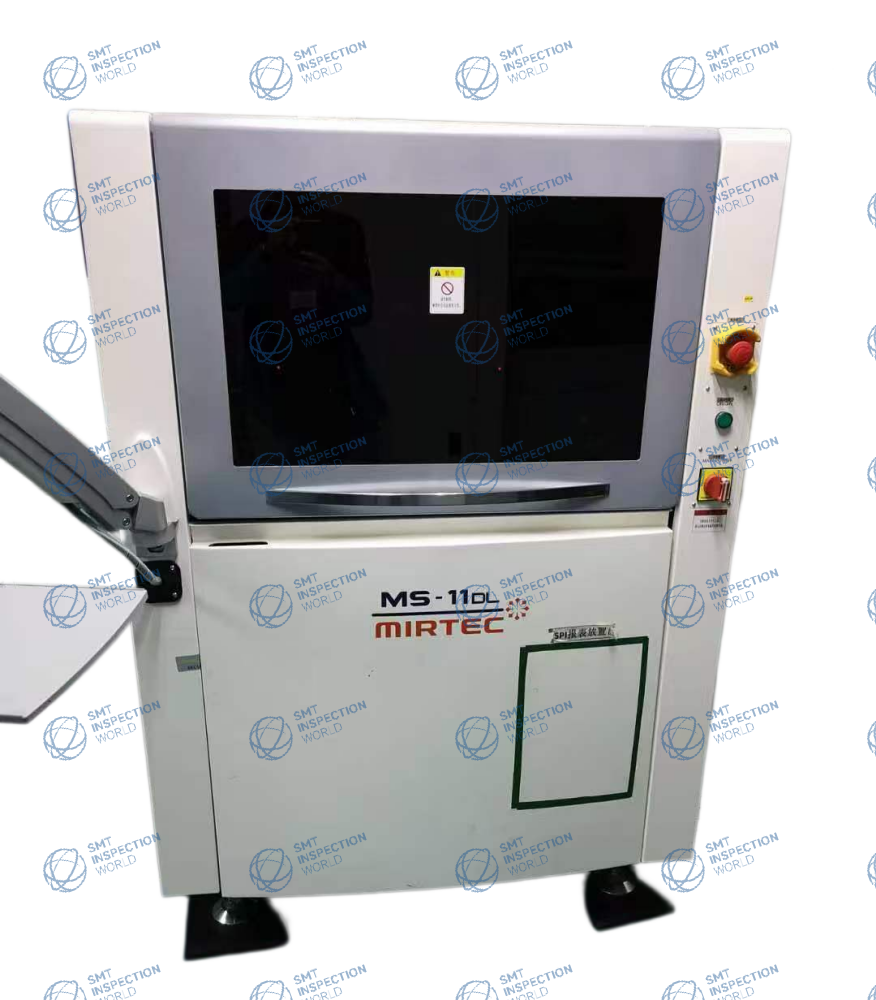

Mirtec MS-11DL 3D SPI

High-Precision 3D Solder Paste Inspection for Modern SMT Manufacturing

The MIRTEC MS-11 is a high-performance 3D Solder Paste Inspection (SPI) system suitable for versatile modern SMT production lines.

Adopting MIRTEC patented shadow-free dual-projection Moiré phase-shift 3D optical inspection technology, the equipment conducts comprehensive 3D analysis of solder paste printing quality, including solder paste height, volume, area, position, shape and printing consistency. It enables precise inspection for tiny 0201 pads and supports a minimum stencil thickness of 30μm.

By identifying printing defects at the early stage of the SMT process, the MS-11 helps manufacturers reduce downstream defects, improve process stability and raise the overall PCBA production yield.

Key Inspection Capabilities

• Solder Paste Height • Solder Paste Volume • Solder Paste Area • Solder Paste Offset • Insufficient Solder Paste • Excessive Solder Paste • Solder Paste Bridging • Printing Shape Abnormalities • Solder Paste Collapse • Printing Consistency

SMT Inspection World Professional Services

3D SPI, 3D AOI, X-Ray / AXI, ICT / FCT, Used SMT Inspection Equipment, SMT Inspection Equipment Rental, Spare Parts Supply, Equipment Upgrade & Maintenance, Technical Support

SMT Inspection World provides professional SMT inspection and testing equipment solutions for global electronics manufacturers, including new equipment sales, used equipment trading, equipment rental, spare parts supply, equipment upgrade, maintenance and technical support.

Specializing in brand new & used PARMI 3D Automatic Optical Inspection (AOI) and 3D Solder Paste Inspection (SPI) equipment sales, rental and genuine spare parts supply. With more than ten years of in-depth industry experience, we have served over 50 manufacturing enterprises at home and overseas.

All new and used devices are fully overhauled, precision-calibrated and functionally tested in strict accordance with original factory delivery standards. Every hardware component, software program and optical system is debugged item by item to ensure excellent operating stability and inspection accuracy. All equipment is fully production-ready and can be put into SMT line operation immediately after arrival.

We support flexible procurement methods including direct equipment purchase, short-term and medium-long-term rental solutions. Perfectly adapting to order volume fluctuations, new project sampling, production line expansion and temporary equipment replacement, effectively reducing customers’ fixed asset investment pressure.

We provide one-stop professional services covering equipment installation, commissioning, on-site technical training, rapid fault response and regular maintenance. Reliable technical support and after-sales services are available for both domestic and overseas projects, ensuring long-term stable quality control of SMT production lines.
