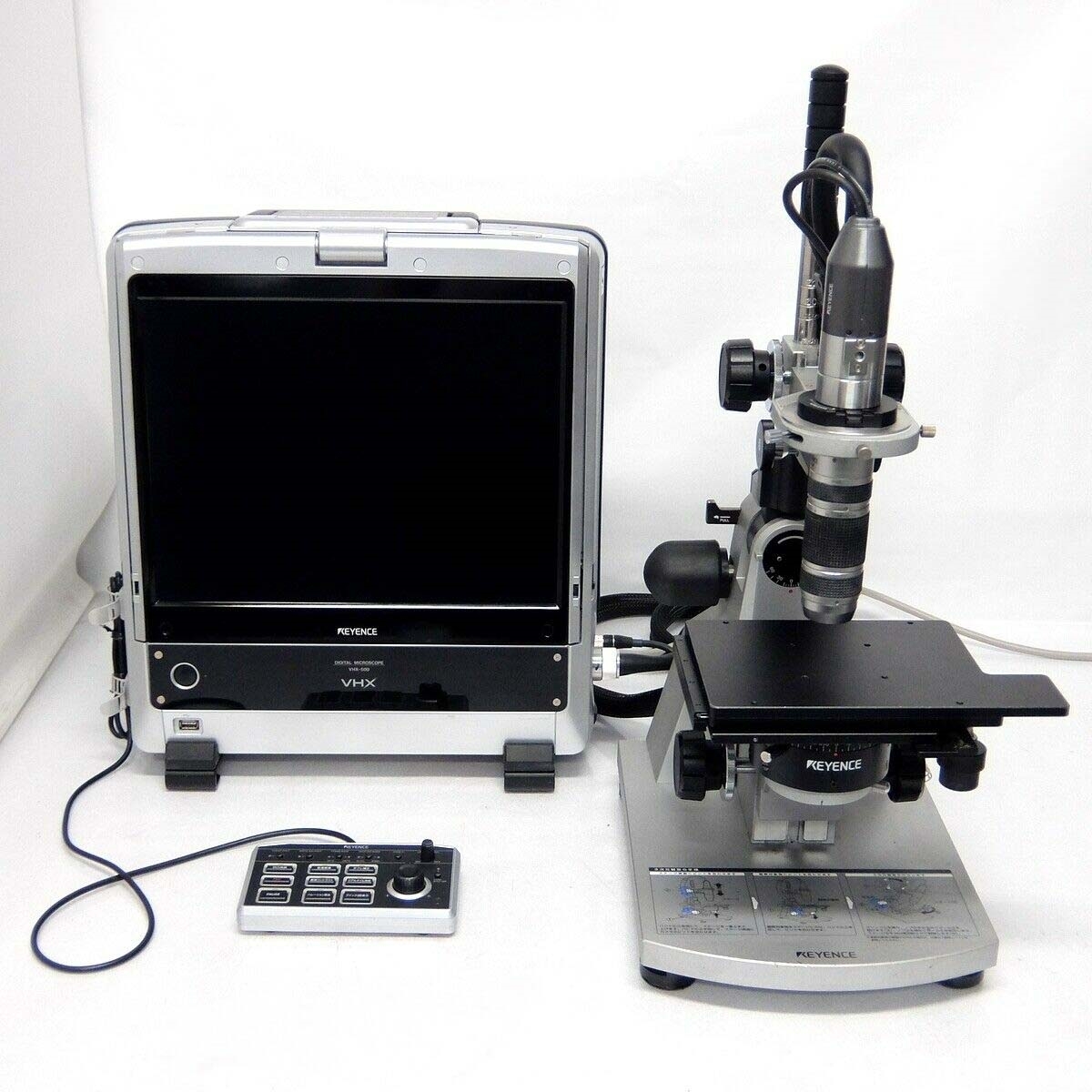

The KEYENCE VHX-500FE is an all-in-one bench-top digital microscope from the VHX-500F series (discontinued), widely deployed for offline lab review and failure analysis of SMT PCBA, automotive and industrial electronics. Equipped with a 2.11MP CCD image sensor and integrated 15" UXGA color TFT LCD. Selectable frame rate 15 / 28 fps, supercharge shutter from 0.2s to 17s for low-light inspection. Powered by extended depth-of-field technology, it captures fully focused images on uneven solder joints and complex components. Multi-angle tilted observation enables visual inspection of BGA/QFN solder wetting, cracks and pinholes. Built-in 2D dimensional measurement and 3D profiling, automatically generate traceable inspection reports compliant with IATF16949. It acts as a laboratory verification tool together with AOI and AXI for defect confirmation and process validation.
Specializing in brand new & used PARMI 3D Automatic Optical Inspection (AOI) and 3D Solder Paste Inspection (SPI) equipment sales, rental and genuine spare parts supply. With more than ten years of in-depth industry experience, we have served over 50 manufacturing enterprises at home and overseas.
All new and used devices are fully overhauled, precision-calibrated and functionally tested in strict accordance with original factory delivery standards. Every hardware component, software program and optical system is debugged item by item to ensure excellent operating stability and inspection accuracy. All equipment is fully production-ready and can be put into SMT line operation immediately after arrival.
